Temperature Mapping

Measure temperature between two surfaces using a thin, flexible sensor. The captured data, combined with advanced analysis tools, provides valuable insights to improve product design, manufacturing processes, quality control, and research.

Introducing Temperature Mapping, powered by I-Scan™

Tekscan’s I-Scan™ platform now features a thin-film temperature mapping capability, enabling detailed measurement of temperature distribution across surfaces—or between two surfaces where thermal cameras can’t reach.

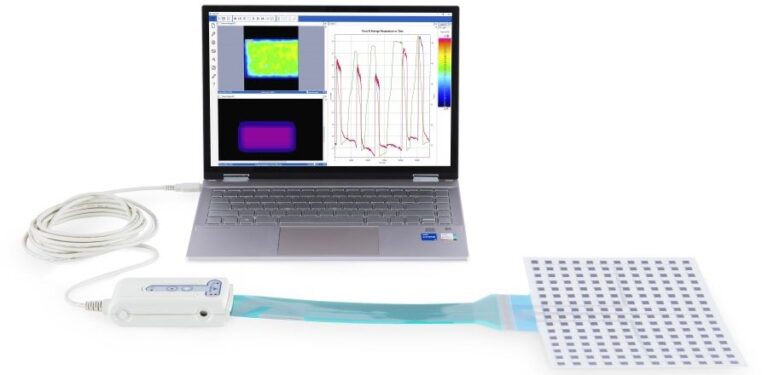

This innovative solution combines I-Scan software and electronics with a thin, flexible temperature sensor to provide precise, high-resolution thermal analysis in an easy-to-use format. The sensor is trimmable to fit your needs and can be used alone or, depending on the package, paired with a Tekscan pressure mapping sensor. This allows simultaneous collection of thermal and pressure data for deeper insights into product performance and process optimization.

Temperature Mapping_System

Key Benefits

Measure Where Thermal Cameras Can’t
Accurately capture temperature in moving parts, enclosed spaces, and multi-layer materials — even inside sealed machinery and rotating rollers where infrared cameras fail. Whether working with enclosed equipment, rotating components, or layered assemblies, Tekscan’s temperature sensing system provides real-time, spatial insight into thermal behavior.

Not Sensitive to Emissivity
Unlike infrared cameras that require emissivity adjustments, these temperature mapping sensors offer precise, direct-contact measurements regardless of material properties.

Visualize Thermal Propagation
Track how heat moves through surfaces and identify critical areas for optimization in product design, material selection, and process control.

Comprehensive Data Insights
Capture high-resolution, real-time temperature distribution for detailed thermal analysis.

Streamline Data Collection
Replace the complexity of multiple thermocouples with a single, trimmable sensor containing up to 192 sensing points.

Correlate Pressure & Temperature
Combine with I-Scan Pressure Mapping to reveal crucial relationships between pressure and temperature that impact product performance and reliability.

Seamless Integration with I-Scan
Fully compatible with the I-Scan 9.5 platform, making it easy to adopt for users already familiar with Tekscan pressure mapping technology.

Temperature Mapping Software

Testech’s temperature mapping solution utilizes Tekscan’s I-Scan 9.5 platform to provide clear, real-time visualization and detailed thermal analysis. The software offers flexible heatmap options, easy calibration, and user-friendly tools designed for accurate and efficient temperature data interpretation.

Key Software Capabilities

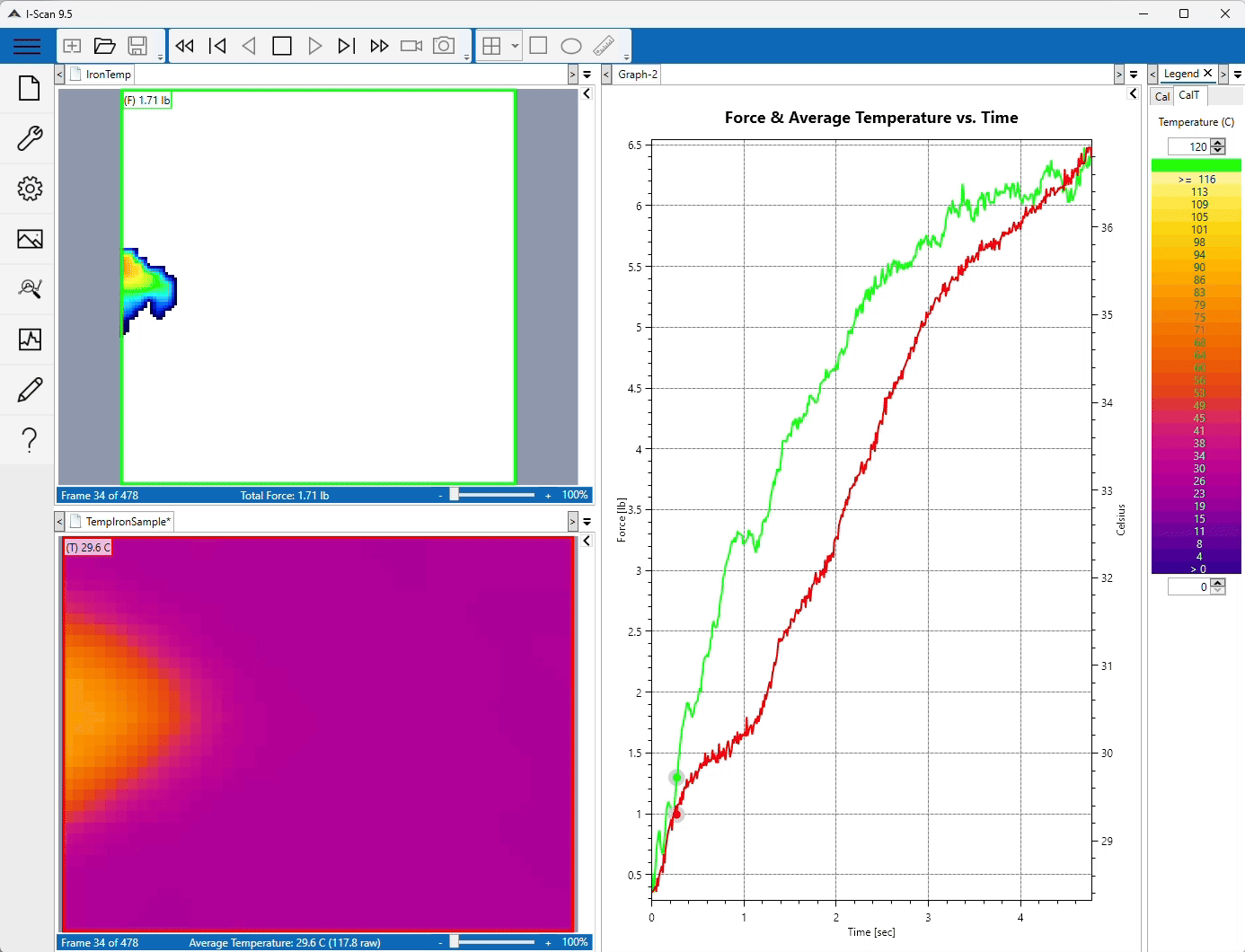

  • Integrated Temperature and Pressure Analysis: Collect and examine temperature and pressure data simultaneously to better understand how these factors interact across surfaces.

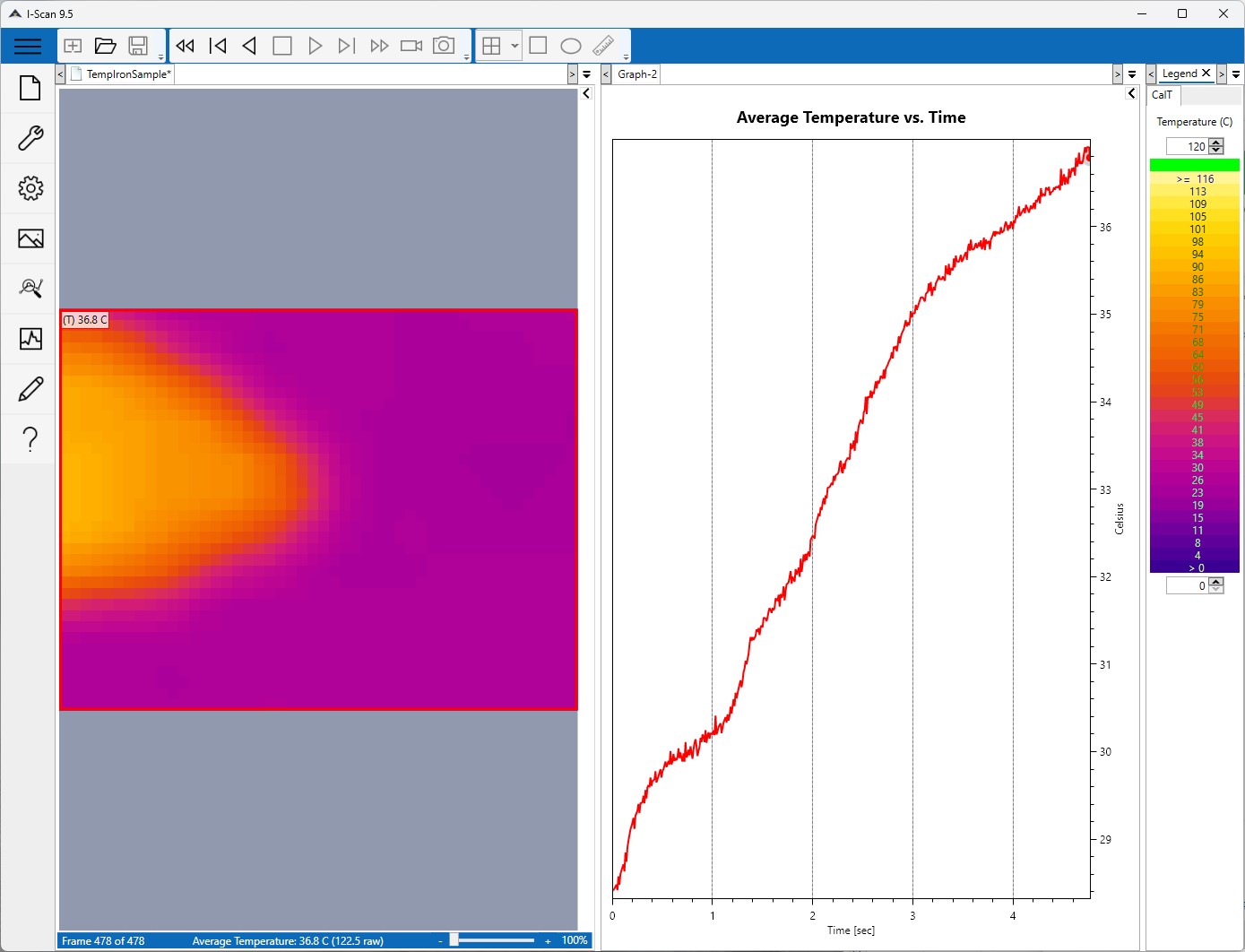

  • Live and Recorded Thermal Mapping: Visualize temperature changes dynamically during tests or review recorded data for comprehensive insights.
  • Combined Graphical Trends: Overlay temperature and pressure trends over time to detect important correlations affecting material and process performance.
  • Familiar, Easy-to-Navigate Interface: Built on the I-Scan 9.5 platform, it provides an intuitive user experience for those accustomed to Tekscan’s systems.
  • Custom Heatmap Visualization: Adjust gradient scales to tailor thermal maps to your specific analysis needs.
  • Simplified Calibration Process: Calibration is straightforward to ensure consistent, reliable measurements. Optional laboratory-grade hot plates are available to support sensor calibration.
  •
Temperature Mapping Software

Applications

Energy Storage

  • Analyze thermal distribution in battery cells, modules, and packs during charge/discharge cycles to identify hot spots.

  • Evaluate insulation layer effectiveness for thermal management.

Automotive

  • Assess heat shield performance to optimize vehicle thermal protection.

  • Monitor electronic heating systems in electric vehicles for efficient cabin climate control.

  • Track temperature propagation and dissipation in engines and high-temperature components.

Appications

Packaging and Manufacturing

  • Validate heat uniformity in sealing bars and jaws during machine setup to ensure consistent packaging seals.

  • Measure temperature consistency in nip rolls for laminating and converting processes.

Electronics & Semiconductor

  • Measure heat dissipation efficiency between components and heat sinks.

  • Evaluate temperature uniformity during wafer manufacturing to ensure semiconductor reliability.

Upgrade Your I-Scan™ System with Real-Time Temperature Mapping

Unlock New Insights with Your Data
Enhance your I-Scan 9 platform with Tekscan’s latest real-time temperature mapping technology. This seamless upgrade adds thermal sensing capabilities that go beyond traditional infrared cameras, enabling you to see temperature variations even in challenging environments. Plus, you can overlay temperature and pressure data for a comprehensive analysis of your products and processes.

Why Add Temperature Mapping?

  • Visualize Heat Flow as It Happens: Monitor how heat spreads across or between surfaces to detect hotspots and thermal inconsistencies in real time.
  • Overcome Limitations of Thermal Cameras: Capture temperature inside sealed assemblies, multi-layer materials, and moving components without needing emissivity corrections.
  • Easy, Flexible Sensor Setup: A single, thin-film sensor provides data from 192 temperature points and can be trimmed to fit your specific application.
  • Reveal Hidden Interactions: Combine temperature and pressure data overlays to uncover vital interactions impacting performance and quality.
  • Familiar Software, Quick Integration: Temperature mapping is activated within the existing I-Scan 9.5 interface, so there’s no need to learn new software.
Temperature mapping

Interested in Accessing Pressure and Thermal Insights

Please contact us to learn more about Tekscan Pressure and Temperature Mapping System.
