Testech Solutions Australia offers a wide range of high-quality force gauges, including digital and diagram force gauges, along with manual and electrical test stands. Designed to meet diverse testing requirements, our products are cost-effective and easy to use. We also provide various grips, fixtures, and accessories, making them perfect solutions for testing and laboratory needs. Whether for industrial testing or research, our force measurement tools ensure accurate and reliable results.

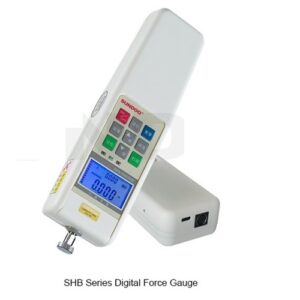

SHB Digital Push Pull Force Gauge
The SHB Series Digital Push Pull Force Gauge is a versatile, high-resolution instrument designed for a variety of applications such as push/pull tests, insertion/withdraw tests, and fracture tests. This advanced force gauge offers real-time data capture and can connect to a computer to display the test force curve and test process, making it an ideal tool for efficient, modern testing.
Key Features:
- Automatic shutdown with customizable time settings
- Switch between three measurement units
- RS-232C/USB output for connection to computers and printers
- Memory for 10 sets of test values with average calculation functionality
- Adjustable upper/lower limit deviations with audible alert
- Automatic peak release with flexible timing
- Peak retention for detailed analysis
- High precision and resolution for accurate measurements

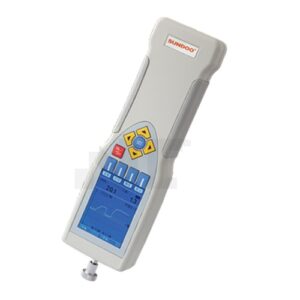

SP Diagram Push Pull Force Gauge
The SP Diagram Push Pull Force Gauge represents the next generation of force measurement tools. Compact, lightweight, and housed in a durable metal body, this gauge is easy to carry and designed for versatility. It is ideal for various tests, including compression, tension, insertion/extraction, breakage, and material strength. When combined with a test stand and clamps, it serves as a compact testing machine suitable for a wide range of applications
Key Features:
- High accuracy and resolution for precise measurements
- TFT color screen displaying peak, real-time values, and test curves simultaneously, allowing monitoring and reviewing of test procedures
- Multiple selectable units: N/kgf/lbf/ozf
- USB output for connection to software, enabling infinite data storage/transmission and detailed curve review; user-defined printing format available
- Auto-off feature for energy saving during inactivity

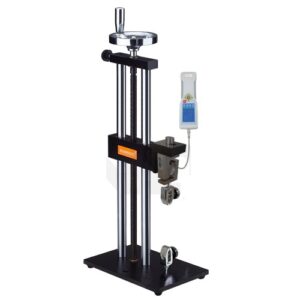

SLJ-1000 Wheel Test Stand
The SLJ-1000 Wheel Test Stand is specifically designed for use with push-pull force gauges, offering versatility and reliability across various industries and research institutions. It is ideal for a wide range of testing applications, including tension/compression tests, insertion/extraction tests, and fracture tests. The test stand features a T-screw transfer mechanism, manual operation for enhanced control, and stability for both vertical and horizontal testing setups.
Key Features:
- Compatible with SHB-1k and SP-1k push-pull force gauges (sold separately), along with various clamps
- Capacity: 1000N
- Stroke: 200mm
- Dimensions: 154mm x 240mm x 550mm (L x W x H)
- Weight: Approx. 9kg

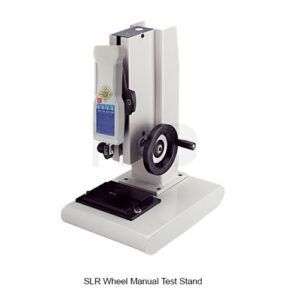

SLR Wheel Manual Test Stand
The SLR Wheel Manual Test Stand is designed to work seamlessly with push-pull force gauges, providing a versatile solution for various testing applications such as switch testing, insertion/withdrawal testing, and fracture testing. Featuring a movable carrier on the base, this stand allows for convenient fixture and clamp adjustments.
Key Features:
- Stable base with handwheel operation for easy overload protection
- Dimensions: 250mm x 355mm x 470mm (L x W x H)
- Weight: Approx. 18.0kg
- Capacity: 500N
- Stroke: 175mm
- Compatible with (sold separately): SN, SHB/SP push-pull force gauges (sensor inside), length meters, and various clamps

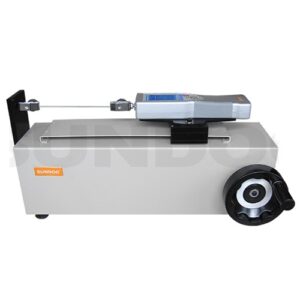

SLH Horizontal Wheel Manual Test Stand
The SLH Horizontal Wheel Manual Test Stand is specially designed for compatibility with push-pull force gauges, providing a reliable solution for various testing needs, including tension/compression tests, insertion/extraction tests, and fracture tests. Featuring a T-screw transfer mechanism and a holistic nut design, the stand offers simplicity, manual control, and excellent stability for a range of testing applications.
Key Features:
- Structure dimensions: 542mm x 189mm x 271mm (L x W x H)
- Weight: Approx. 21.5kg
- Capacity: 1000N
- Stroke: 250mm
- Compatible with SN, SKN (1kN) and SHB/SP (2N-1kN) series push-pull force gauges (sold separately), along with various clamps

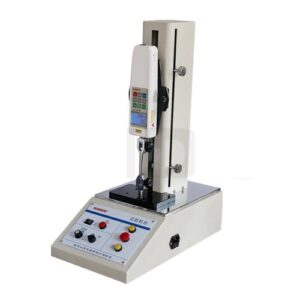

SJY-500 Electric Vertical Test Stand
The SJY-500 Electric Vertical Test Stand is designed for tension and compression testing in combination with push-pull force gauges. Offering excellent stability and versatility, this test stand is easy to operate, featuring stepless speed adjustment and the ability to switch between manual and automatic modes.
Key Features:
- Dimensions: 428mm x 240mm x 600mm (L x W x H)
- Stroke: 250mm
- Weight: Approx. 24.2kg
- Testing speed: 50-250mm/min (max load 200N); 250-500mm/min (max load 500N)
- Compatible with (sold separately): SN, SHB/SP (sensor inside) push-pull force gauges, and various clamps

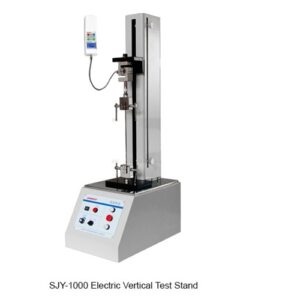

SJY-1000 Electric Vertical Test Stand
The SJY-1000 Electric Vertical Test Stand is designed for tension and compression testing in conjunction with push-pull force gauges. It offers excellent stability, a wide range of applications, and ease of use, featuring stepless speed adjustment for uniform motion and the ability to switch between manual and automatic operation.
Key Features:
- Dimensions: 410mm x 270mm x 970mm (L x W x H)
- Stroke: 520mm
- Weight: Approx. 31.2kg
- Testing speed: 50-245mm/min (max load: 500N); 250-500mm/min (max load: 1000N)
- Compatible with (sold separately): SN, SP/SHB (2N~1kN) push-pull force gauges, and various clamps

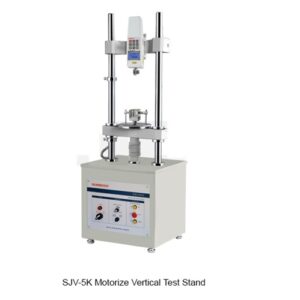

SJV-5K(SH) Electric Vertical Test Stand
The SJV-5K Electric Vertical Test Stand features a double vertical pillar design, providing exceptional stability, versatility, and ease of use. It is ideal for performing tension, compression, insertion/withdraw, and fracture tests.
Key Features:
- Dimensions: 410mm x 260mm x 1030mm (L x W x H)
- Testing speed: 30~240mm/min
- Stroke: 200mm
- Weight: Approx. 54.8kg
- Compatible with (sold separately): SN/SKN, SHB/SP (2N~5kN) push-pull force gauges, and various clamps

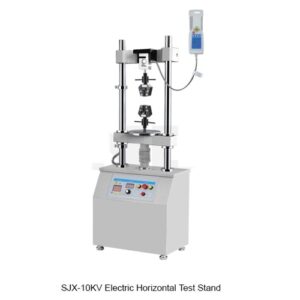

SJX-10KV Electric Vertical Test Stand
The SJX-10KV Electric Vertical Test Stand features a robust double vertical column design, ensuring excellent stability, a broad application range, and ease of use. It offers stepless speed adjustment with the ability to switch between uniform motion, manual control, and automatic operation. The stand also features an automatic recycling switch function, allowing pre-set up/down testing cycles. When used with an SH push-pull force gauge, it can be set to automatically power off when a specified load is reached. It is ideal for tension, compression, insertion/withdrawal, and fracture tests across various industries.
Key Features:
- Dimensions: 410mm x 260mm x 1330mm (L x W x H)
- Stroke: 200mm
- Weight: Approx. 59.5kg
- Capacity: 10000N
- Testing speed: 30-120mm/min
- Compatible with (sold separately): SKN/SN, SP/SHB (2N-10kN) push-pull force gauges, and various clamps

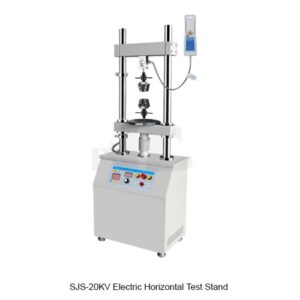

SJS-20KV Stepper Motor Vertical Test Stand
The SJS-20KV Stepper Motor Vertical Test Stand utilizes a stepper motor to deliver superior stability, broad application capabilities, and precise speed control. It features stepless speed adjustment, manual operation, and automatic cycling. When paired with a force gauge and software, it enables computer-controlled data testing and stand operation. This test stand is versatile for tension, compression, insertion/withdrawal, fatigue, and destructive testing.
Key Features:
- Dimensions: 410mm x 260mm x 1080mm (L x W x H)
- Weight: Approx. 64kg
- Capacity: 20000N
- Stroke: 200mm
- Testing Speed: 1-100mm/min; Speed Resolution: 1mm/min
- Can be configured with (sold separately): SHB/SP (2N-20kN) force gauges and various clamps

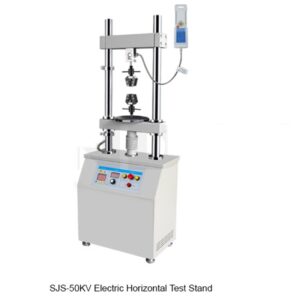

SJS-50KV Stepper Motor Vertical Test Stand
The SJS-50KV Stepper Motor Vertical Test Stand features a stepper motor for exceptional stability and a wide range of applications. It offers precise and adjustable test speeds with stepless speed control, as well as both manual and automatic cycling options. When integrated with a force gauge and software, it allows for comprehensive computer-controlled data testing and stand operation. This test stand is suitable for tension, compression, insertion/withdrawal, fatigue, and destructive testing.
Key Features:
- Dimensions: 600mm x 300mm x 1200mm (L x W x H)
- Weight: Approx. 75kg
- Capacity: 50,000N
- Stroke: 200mm
- Testing Speed: 1-100mm/min; Speed Resolution: 1mm/min
- Configuration Options: Compatible with SHB/SP (2N-50kN) force gauges and various clamps (sold separately)
